Description
GSM subscription required, SIM card provided and activated during install)
(Non CANBUS Vehicle)
The Pandora Elite v2 is equipped with a new 4G modem, 2xSIM, Bluetooth 5.0 and 868 MHz LoRa modulation. The system has a new remote control with a large and bright LCD display and a built-in Li-Po battery. The remote connects to the main unit by the long-range 868 MHz radio and Bluetooth protocol. The real hardware Bluetooth 5.0 implementation will allow you to control the system from your phone by Bluetooth at a distance of up to 160-180 meters. The newest GSM modem supports 4G/LTE (class1), 3G, 2G (GPRS) in combination with two GSM antennas provides great network coverage. All these features guarantee the highest level of anti-theft protection and maximum usability.
INTERNET SERVICE AND MOBILE APPLICATIONS
The special internet-service pandora-on.com, mobile applications Pandora Pro (iOS) and Pandora Online (Android) for smartphones and smartwatches (Apple watch, Android Wear, Samsung Gear S2/S3) allows you to combine your vehicle and your gadgets into one platform. You can configure and control all of your vehicles with the multifunctional Pandora applications and Internet-service pandora-on.com
MOBILE PHONE
A built-in GSM interface expands a zone where you can control the system and receive alarm and service notifications to the cellular network coverage area. Just call the system number and enter a command to control or configure your system. Enable SMS and voice notifications and the system will notify you in case of any alarm events.
REMOTE CONTROL

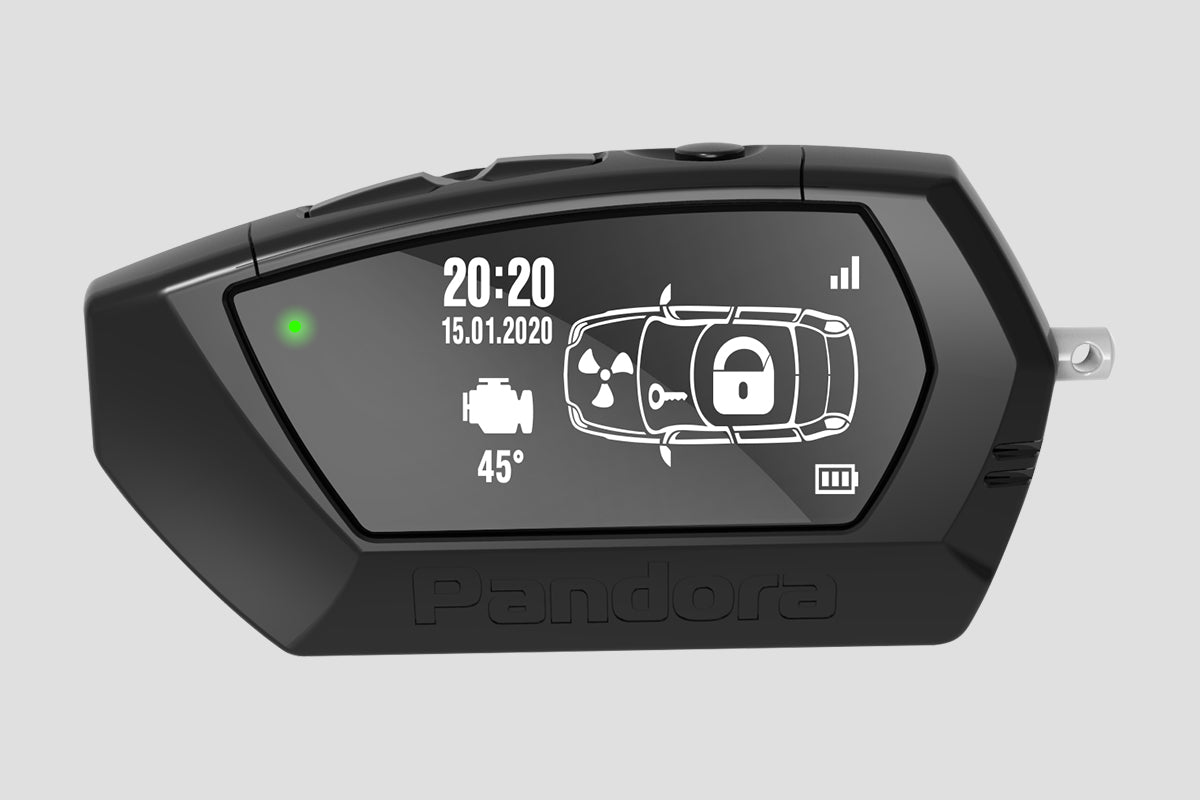

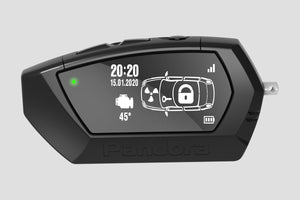

A new remote control D-043 has a modern multichannel jam-resistant 868 MHz radio link with the LoRa modulation. This provides a reliable connection at a very long range and allows you to monitor car state at a record distance in a very noisy environment.
BLUETOOTH TAG

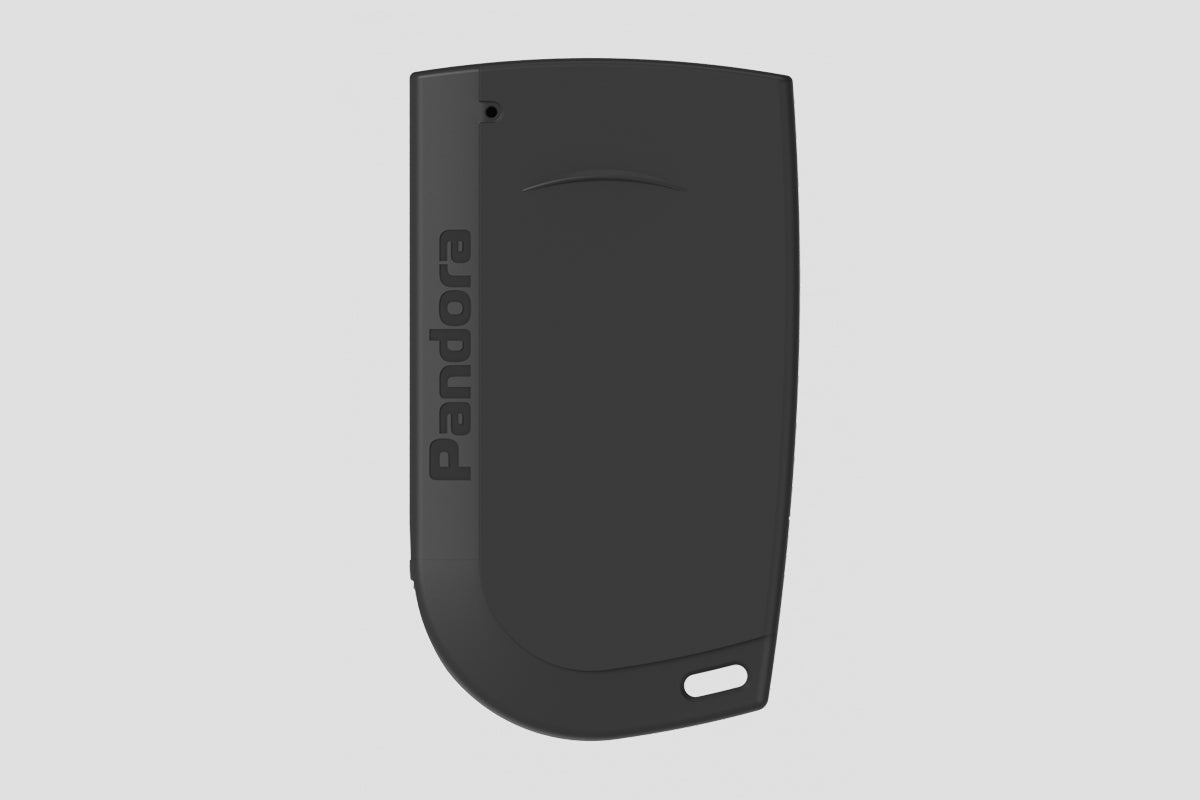

This miniature device is used to implement automatic Hands Free function with adjustable operating distance, immobilizer and Anti-Hi-Jack functions.
GPS COORDINATES
Due to an integrated GPS/GLONASS receiver, you can always get information about your car location and tracks, history of geo-referenced events.
OWNER’S PERSONAL SAFETY
In case of a car accident, the system will automatically detect it and send notifications to emergency services and owner’s close ones. All notifications are supplemented with car current coordinates and web links to online map services.
REMOTE AND AUTOMATIC ENGINE START
The system allows you to remotely start and stop the engine or to set automatic engine start by different parameters (by time, voltage or temperature). The system performs a reliable control over the engine operating parameters and your vehicle status. Our modern technologies allow the system to bypass or clone an original key of a car to implement safe engine start.
CONTROL OVER ENGINE PREHEATERS
The system provides the most flexible and convenient algorithms to control original or additional engine preheaters.
INTEGRATED ACCELEROMETER
An integrated 3D accelerometer and elaborate algorithms allows the system to control the vehicle shock/tilt/motion security zones and perform engine blocking on movement starting. New highly sensitive and reliable accelerometer provides smart protection and prevents false alarms.
ENERGY EFICIENCY
Due to the most modern algorithmic solutions, the latest electronic components, the system works correctly on all current car models and meets the requirements of car manufacturers.
INTEGRATED BLUETOOTH INTERFACE
BLUETOOTH 5.0 protocol supports a mobile phone and all our additional Bluetooth devices.
System set

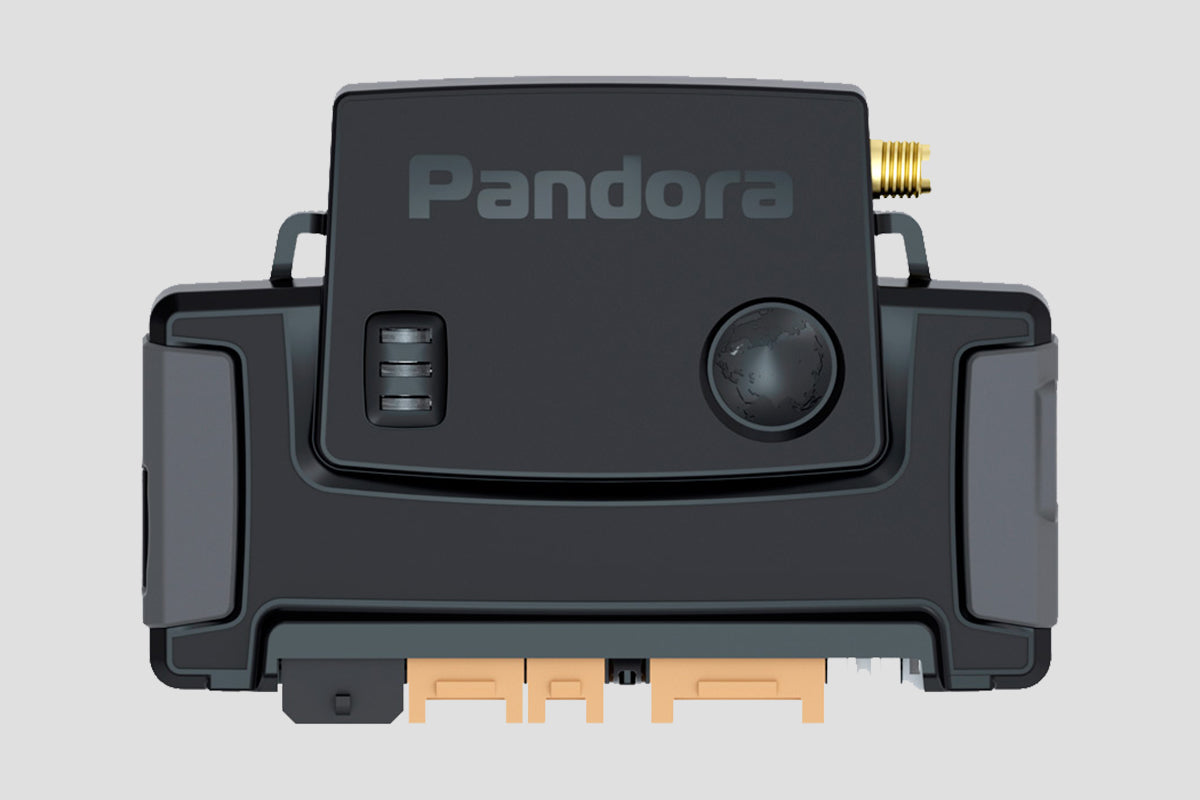

- Base unit DXL 4790L with master-PIN card – 1
- Immobiliser tag – 2
- Main control remote with LCD (D-043) – 1
- RF-module RFM-470
- External GSM antenna
- Relay module set RMD-5M – 1
- Siren Pandora PS-332 – 1
- Fastening kit DeLuxe – 1
- System wires
- Immobiliser speaker – 1
- Cable with LED/VALET button – 1
- Temperature sensor – 1
- Manual and wiring diagram- 1
- Packaging – 1
- Leather case for tags – 1
Features
| Remote start | : | Yes |
| Rolling code | : | Yes |
| Turbo timer | : | Yes |
| GSM | : | Yes |
| CAN-bus connection | : | Yes |
| Remote LCD two-way pager | : | Yes |
| Additional one-way pager | : | Yes |
| Immobilizer with tags | : | Yes |
| Shock sensor | : | Yes |
| Motion sensor | : | Yes |
| Tilt sensor | : | Yes |
| Wireless immobilizer relays | : | Yes |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Installation
Part Number
Elite-V2
More Information
Manufactured by
Pandora
